BAMBOO LINE
3D CORE

KB

CATEGORY

POWDER / FREERIDE / CARVING

Flexibility

MEDIUM SOFT

Length 1524 mm
Nose width 312 mm
Waist width 257 mm
Tail width 292.2 mm
Cam 1.5 mm
EF. Edge 971.3 mm
C. Length 971.3 mm
Sidecut 4390 mm
Stance 480-560 mm

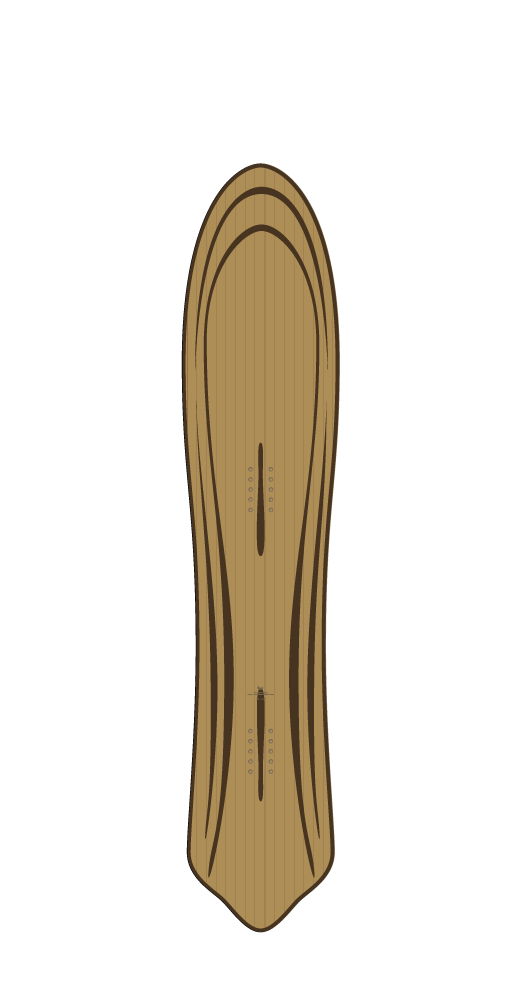

KB

The KB, with a total length of 152cm, can be rightfully called a versatile board. Its shape, which curves in opposite directions at the nose and tail, allows for powerful control over the flow of snow, lifting the short tail while maintaining strong edge contact on groomed snow for stable and precise turns. The KB's overwhelming stability gives a sense of speed and enables high-speed carving maneuvers, while its maneuverability allows for agile control even in powder snow. This model is designed to be enjoyed by a wide range of individuals, from women to men. It excels in various conditions and offers a combination of stability and performance that appeals to many riders.

KBは全長152cmであると説明されています。その形状はノーズとテールで真逆に湾曲しており、このデザインは雪の流れを効果的にコントロールし、ショートテールを浮かび上がらせるために役立ちます。また、圧雪の場合には特に強力なエッジコンタクトを提供し、安定かつ確実なターンを可能にします。
このボードは非常に安定感があり、短い長さを感じさせない特徴があります。そのため、高速なカービング操作が可能であり、さまざまな環境での能力を発揮することができます。また、パウダー雪の場合には浮力を生かしながらも機敏な操作ができるでしょう。さらに、このボードは女性から男性まで、幅広い方々に楽しんでいただけるモデルとなっています。その扱いやすさやパフォーマンスのバランスが、多くの人々にとって魅力的な選択肢となることでしょう。





LTA

CATEGORY

POWDER / FREERIDE / CARVING

Flexibility

MEDIUM SOFT

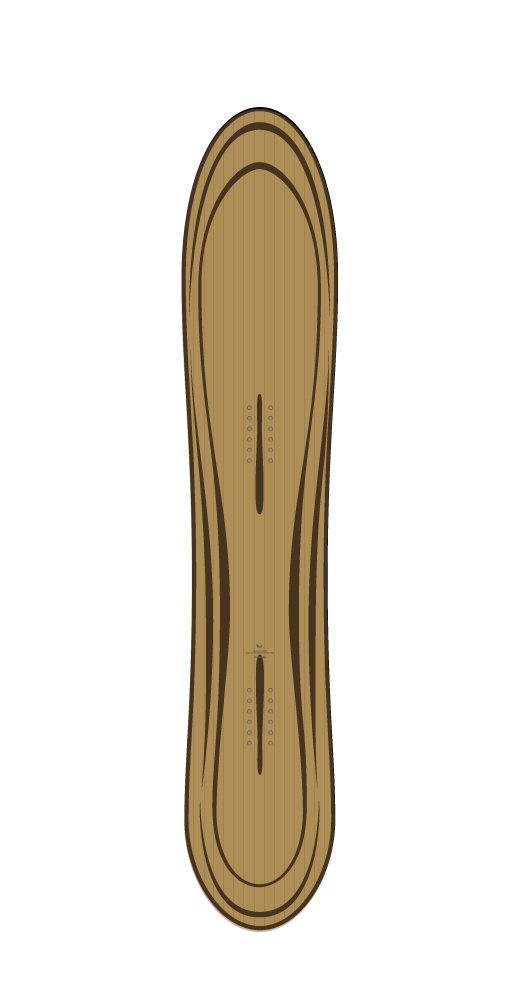

LTA6

Length 1580 mm
Nose width 300 mm
Waist width 260 mm
Tail width 288 mm
Cam 2.3 mm
EF. Edge 1042 mm
C. Length 928 mm
Sidecut 7000 mm
Stance 480-600 mm

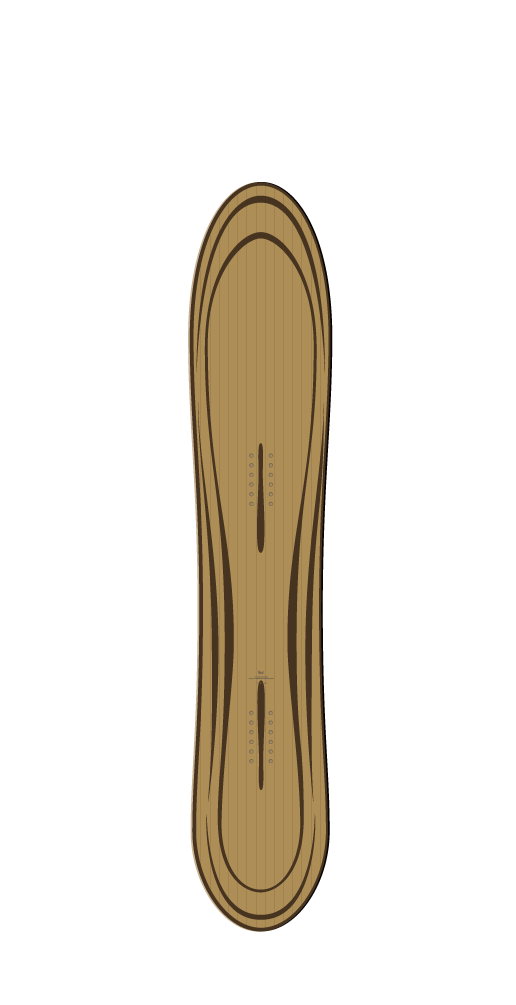

LTA4

Length 1480 mm
Nose width 281 mm
Waist width 243 mm
Tail width 270.9 mm
Cam 1.8 mm
EF. Edge 977 mm
C. Length 870 mm
Sidecut 6781 mm
Stance 440-560 mm


 LTA is a nimble and highly maneuverable board. Its shorter effective edge compared to the overall length allows it to respond faithfully to the rider's intentions. Additionally, the reduced nose height enables it to maintain floatation in powder without experiencing significant loss of speed. The inherent stability of its directional shape, combined with its smooth maneuverability, makes it a versatile model that can be enjoyed in various environments, from groomed slopes to powder.

LTAは機敏で操作性に優れたボードです。全体の長さに比べて接地面が短いためライダーの意思に忠実に反応します。また、ノーズの高さも抑えられているためパウダーでも大きな失速をせずに浮力を発揮します。ディレクショナル形状特有の安定感は滑らかな操作性が特徴的でゲレンデからパウダーまで様々な環境で楽しむことができるモデルです。





SVO

CATEGORY

POWDER / FREERIDE / CARVING

Flexibility

MEDIUM SOFT

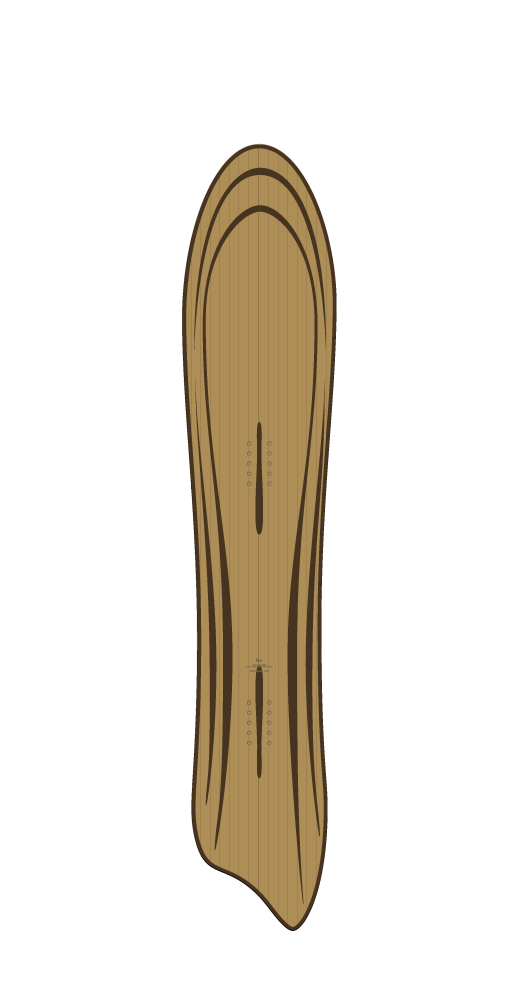

SVO Regular

Length 1570 mm
Nose width 307 mm
Waist width 247 mm
Tail width 270 mm
Cam 1 mm
EF. Edge 1010/985 mm
C. Length 707.4/717.4 mm
Sidecut 5819/5455 mm
Stance 480-560 mm

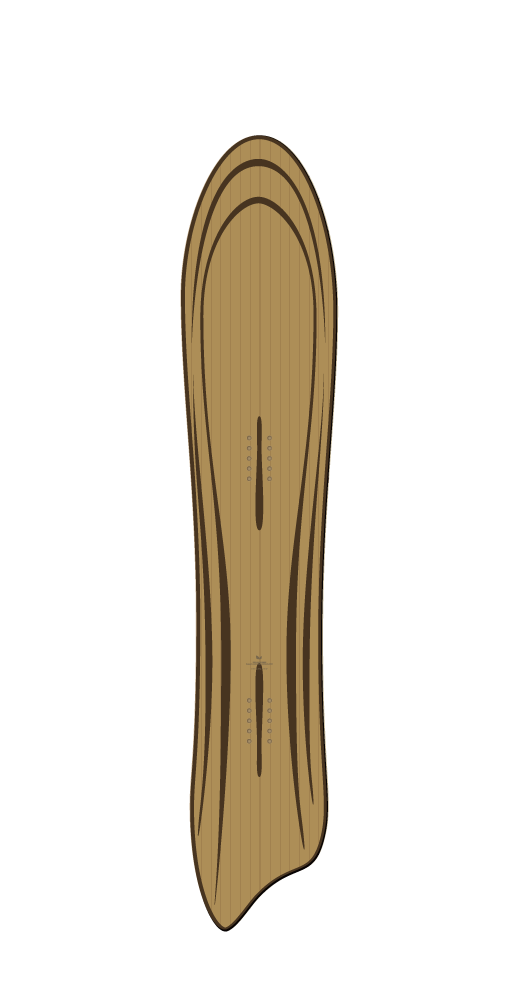

SVO Lefty

Length 1570 mm
Nose width 307 mm
Waist width 247 mm
Tail width 270 mm
Cam 1 mm
EF. Edge 1010/985 mm
C. Length 707.4/717.4 mm
Sidecut 5819/5455 mm
Stance 480-560 mm


The SVO, with its complete asymmetrical design, is an exceptionally well-designed shape for enhanced maneuverability on sideways-riding snowboards.Not only is the outline shape asymmetrical, but the positions of the side curves, as well as the camber and rocker shapes, are also completely asymmetrical. The asymmetrical design of the FIELD EARTH stands in direct contrast to the asymmetrical shapes commonly found in traditional alpine boards.Due to the sideways orientation of snowboarding, there is a difference in edge length between the nose and tail, resulting from the angle at which the rider's feet are positioned. Additionally, performing turns on the backside, which is the side opposite to the rider's front side, can be more challenging due to the longer edge on the backside, which is influenced by the body's structure.Furthermore, the SVO adjusts the set stance angle through the board shape, making it easier to control both sides with the same sensation. However, when considering turns on packed snow alone, a simple shape that offsets the edges between the left and right sides (with the backside extending further back) is effective. Yet, such a shape can cause significant resistance on the backside in powder conditions, leading to slower turns. To address this, the SVO is designed with a shorter backside shape for powder, while ensuring that the edge contact on packed snow favors a longer backside, creating a truly opposite design that allows for two different sensations on a single board.As a result, the SVO enables precise turns on packed snow while offering incredibly nimble turns in powder. While the SVO boasts a highly distinctive design, it is ultimately crafted to make sideways-riding vehicles like snowboards exceptionally easy to control. Experience the ultimate ease of riding with the SVO.

完全非対称のSVOは、横向きで乗るスノーボードを究極に操作しやすいようにデザインされた非常に優れた形状です。
アウトライン形状はもちろん、左右のサイドカーブの位置やキャンバーとロッカーの形状までもが完全非対称です。FIELD EARTHの非対称形状は、従来のアルペンボードに見られる非対称形状とは真逆のアウトライン形状を採用しています。
スノーボードは進行方向に対して足の角度を前方向に向けているため、ノーズやテールまでのエッジの長さが左右で異なります。また、スノーボードは背中側にターンをするバックサイド側が人の構造上、フロントサイドターンに比べて難しいものですが、それはフロントサイドよりバックサイドのエッジの方が長くなっていることも要因の一つです。
さらに、SVOはセットスタンスの角度をボード形状で調整して左右を同じ感覚で操作しやすくしています。ただし、圧雪でのターンだけを考えると、単純に左右でエッジをずらした形状(バックサイド側が後方に伸びる形状)が有効です。しかし、この形状ではパウダーではバックサイド側の抵抗が大きくなりすぎてターンが遅くなってしまいます。そこで、パウダーではバックサイドが短い形状でありながらも、圧雪ではエッジの接雪をバックサイド側が長くなるように真逆にデザインされ、1つのボードで2つのフィーリングを体感できるようになっています。そのため、圧雪ではキレのあるターンができますが、パウダーでは非常に軽快なターンが可能です。SVOは非常に個性的なデザインですが、それはスノーボードのようなサイドスタンスの乗り物を操作しやすくするための究極に乗りやすくデザインされたモデルです。





SMM

CATEGORY

POWDER / FREERIDE / CARVING

Flexibility

MEDIUM SOFT

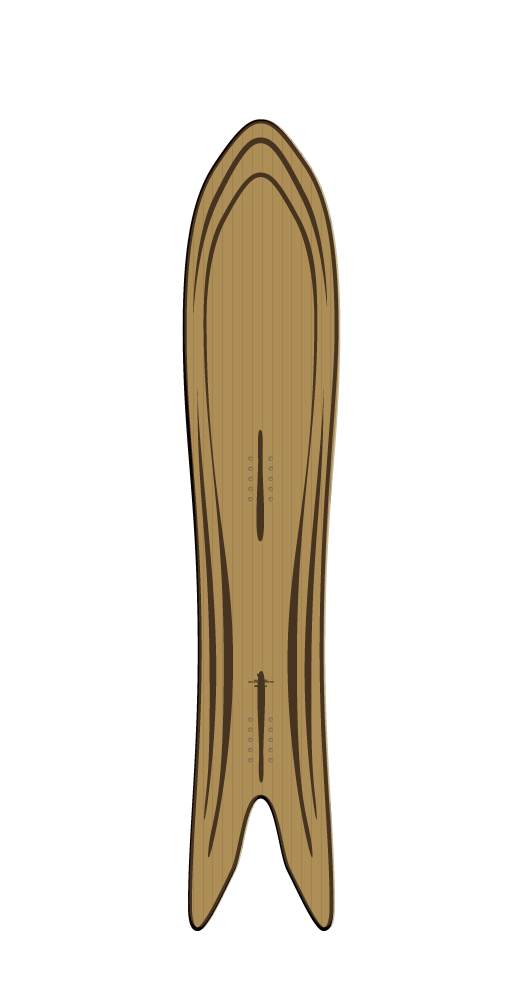

SMM6

Length 1615 mm
Nose width 312 mm
Waist width 251 mm
Tail width 291 mm
Cam 2.5 mm
EF. Edge 1148 mm
C. Length 745 mm
Sidecut 5100 mm
Stance 480-560 mm

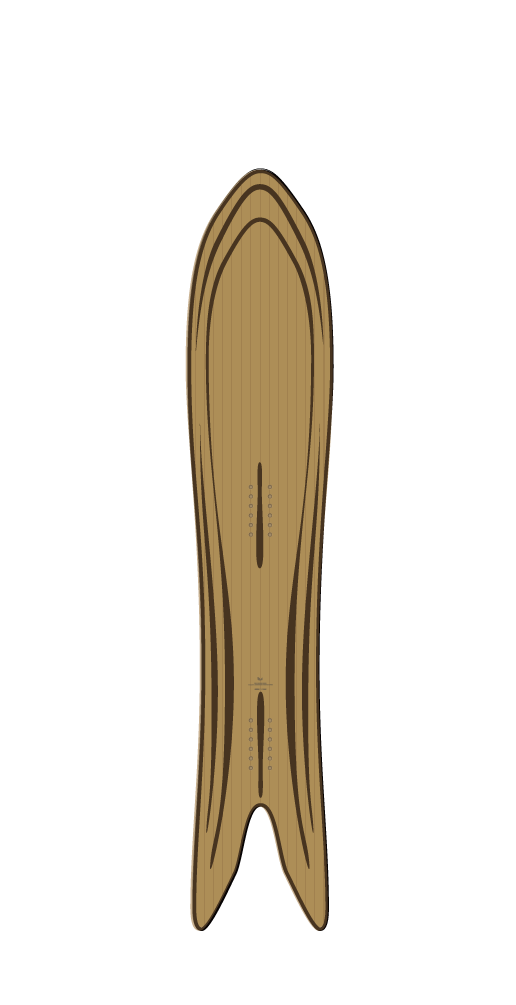

SMM5

Length 1560 mm
Nose width 298.6 mm
Waist width 240.9 mm
Tail width 278.7 mm
Cam 2.5 mm
EF. Edge 1110 mm
C. Length 745 mm
Sidecut 4600 mm
Stance 480-560 mm


The SMM tail fin enables precise edge control, allowing riders to adjust and vary the tail fin based on their weight distribution, resulting in a wide range of side curves. This characteristic, when combined with accurate edge manipulation, facilitates smooth turns with a sticky feel, allowing for increased speed.Furthermore, the two-step nose design is specifically crafted to lengthen the side curve, providing not only effective carving on groomed snow but also enhanced floatation during powder riding. The rider's position is strategically set near the center to ensure that the snowboard and the snow surface remain as parallel as possible, promoting stability and preventing stalling. From high-speed carving turns on hard snow to powder riding, let's enjoy the snowy mountains with precise turns.

SMMのテールフィンは、確実なエッジ操作を可能にします。ライダーが加重をかけることでテールフィンが可変し、さまざまなサイドカーブが生まれます。この特徴により、的確なエッジ操作と組み合わせて粘りのあるスムーズなターンでスピードを上げていくことができます。さらに、2段階ノーズは、サイドカーブの長さを長くするためにデザインされており、圧雪状態でのカービングだけでなく、パウダーでの滑走時にも浮力を提供します。乗り位置はセンター付近に設定されており、雪面と板ができるだけ平行になるように配慮されています。これにより、失速することなく安定した滑りが可能です。硬い雪での高速なカービングターンからパウダーライディングまで的確なターンで雪山を楽しみましょう。


3D CORE

The traditional WOOD CORE used to be constructed in a vertical direction. However, the 3D CORE represents a new advancement. To achieve precise torsion and flex tailored to each model, it is built not only in a single direction but also in a 360-degree orientation, resulting in a more delicate and nuanced feeling.
The wood that forms the BAMBOO CORE, visible on the deck surface, may initially appear to be oriented vertically. However, it is not a simple vertical arrangement as before. Instead, it is connected in various angles, all converging on the base side. The 3D CORE is meticulously designed, incorporating detailed adjustments such as applying tension to individual wood lines and allowing force to release diagonally. It is completely integrated into the overall structure, delivering an immediately perceptible and pleasant sensation when riding. The deck design that showcases the functionality and design of the 3D CORE effectively expresses the characteristics of the BAMBOO LINE.

3D COREは、従来のWOOD COREとは異なる新しい技術です。従来の木製コアは垂直方向に組まれていましたが、3D COREは360°方向に組むことでより細かなトーションとフレックスを実現しています。
デッキ面に見えるBAMBOO COREの木材は一見垂直に見えますが、実際には様々な角度を持ちながらソール側で一体化しています。また、3D COREでは各木材のラインにテンションを加えたり、斜め方向に力が抜けるように設計されています。これにより、ボード全体として完全に統合された3D COREは、乗るとすぐに心地よいフィーリングを体感することができます。3D COREは機能的なデザインであり、デッキデザインにも表れています。BAMBOO LINEの特徴をよく表現しており、より高度なトーションとフレックスを実現するための新しいコア技術を活かしています。
